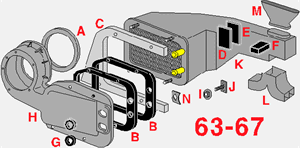

1963-1967 Corvette Deluxe Heater Box Seal Kit - see A+2B+C+D+E+F+2G
CAVEAT EMPTOR: includes semi tubular Rivets, wire for a staple plus 9 die cut sponge rubber & foam seals. Best of all, includes schematic with instructions. Made in Bridgeport, CT USA.
A - Lt Gray Sponge Rubber Seal - helps isolate vibration from blower motor being transmitted to dash board / cockpit.
B - Black Sponge Rubber Seal - seals outer heater box to firewall
B - Black Sponge Rubber Seal - seals inner heater box to firewall
C - Gray Polyfoam with mount holes - seals heater core plate to inner heater box
D - Black Sponge Rubber Seal - block hot air when closed
E - Black Sponge Rubber Seal - passes hot air when opened
F - Black Sponge Rubber Seal - opens for defroster heat
G - Black Sponge Rubber Seal - slips over heater core tubes as the exit outer heater box. Supposedly only used on 1963/
COMPARE EM
Vendor | Part # | List | Save $ |
DocR | 8844007 | 44.00 | |
zip | ZWS478 | 52.99 | 8.99 more expensive |
CC | 452020 | 54.05 | 10.05 more expensive |
NOTE: Do not order this kit if you have Air Conditioning.
1963 1964 1965 1966 1967
